Brand Name : | New Asia Rich |
Model Number : | CBN grooving tool |
Price : | Negotation |
Payment Terms : | T/T |
Supply Ability : | 20 EA day |
Delivery Time : | 10-14 woring days |

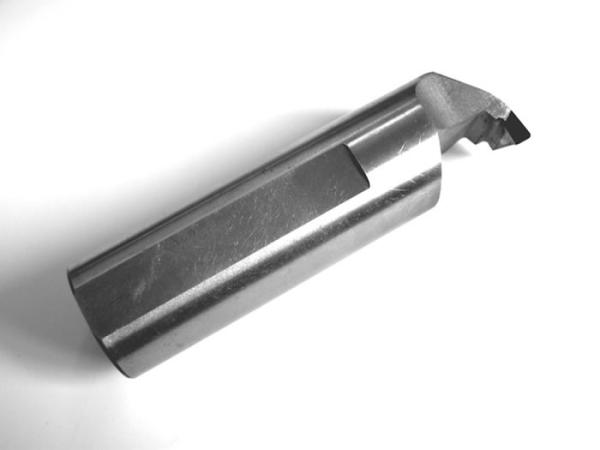

CBN Grooving tools
PCBN external grooving tool is used to groove and cut hardened steel, hard cast iron, grey cast iron and iron series metal work pieces.
Technical Specifications
Specifications:
W1 | H1 | H | W/D | L | d | L1 | f | R |
3 | 10 | 20 | 20 | 120 | 10 | 30 | 8 | 0.4 |
3 | 10 | 20 | 20 | 120 | 10 | 30 | 8 | 0.4 |
3 | 7 | 14 | D14 | 120 | 16 | 30 | 11 | 0.4 |
3 | 10 | 20 | D12 | 120 | 16 | 30 | 11 | 0.4 |
![]() |
