Zhengzhou New Asia Rich Superhard Cutting Tools Co.,Ltd Professional quality and excellent quality.
7 Years
| Ask Lasest Price | |
| Brand Name : | Rich cutting tool |
| Model Number : | Solid CBN Inserts |
| Certification : | CE, ISO |
| Price : | negotation |
| Payment Terms : | T/T |
| Supply Ability : | 50 EA days |
| Delivery Time : | 10~30 work days |

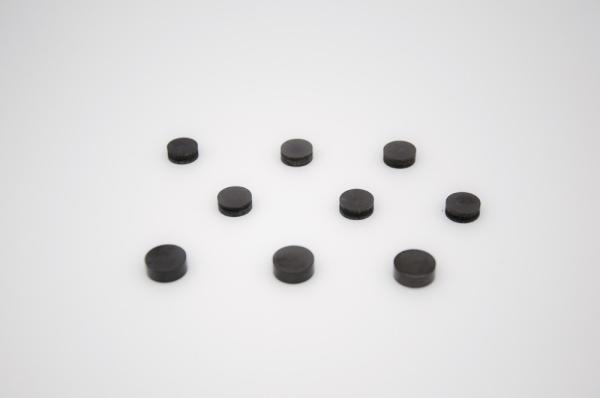

Suitable for roughing of cast iron and steel parts
CBN Introduction and application:
Our CBN inserts mainly used for turning,cutting and milling high nickel and chrome cast iron workpiece,automotive brake disc, brake drum, cast iron wheel hub,cast iron roll,roller and pumps, free testing sample of solid CBN insert, Pcbn insert and tipped indexable CBN turning insert, milling insert are all available,only need you provide us detailed cutting condition,like the CBN insert ISO size and grade you are using, the workpiece name, workpiece material, rough or semifinish of finish turning,continuous or interrupted working.
The major application of CBN inserts is high-speed machining for hardness metal such as : hardened steel, powdered metal, super-alloy and cast-iron.
Our CBN inserts are designed and manufactured to provide significantly longer tooling life and uniform surface finish also excellent dimensional control. As a direct result, all cost of the component can be significantly decreased, resulting in higher productivity as well as cost savings in the total manufacturing operation are successfully achieved.
Performance Comparison of solid CBN inserts drill cutters
Specifications of Solid and tipped CBN PCD insert Cutting tools
| Parameters Recommended for CBN Cutting Tool | ||||
| Work Piece Material | Hardness | V(m/min) | f (mm/rev) | Ap (mm) |
| Gray Cast Iron | HB170~300 | 500~1500 | 0.1~0.4 | 0.1~1.5 |
| Alloyed Iron | HB240~300 | 150~300 | 0.05~0.4 | 0.1~0.5 |
| Nodular Cast Iron | 100~350 | 200~400 | 0.1~0.4 | 0.1~0.5 |
| P/M Fe-based | HRC55-65 | 50~150 | 0.05~0.4 | 0.05~0.5 |
| Hardened Steel | HRC55~65 | 80~200 | 0.05~0.2 | 0.05~0.2 |
| Heat-resistant Alloys | 110~160 | 50~200 | 0.05~0.2 | 0.05~0.2 |
Application & User Case
The CBN insert can be used in CNC turning operations for finishing precision hardened material parts, a highly polished surface can be achieved when using CBN inserts. Our CBN inserts are specially geared toward aerospace and automotive applications.
Advantage of Solid and tipped CBN PCD insert Cutting tools
| 1 high precision |
| 2 firm clamping |
| 3 all the cutting tools quality meet the ISO international standard. |
| 4 high strength and high hardness, hard-wearing |
| 5 competitive price |
| 6 fast delivery |
|
|
